12 V ELECTRIC WINCH DWM 13000 HD - 5897 KG - SYNTHETIC ROPE
NOTE: LARGER ITEM (possible change in shipping costs, in this case we will notify you by phone)
Toote kood:
13983
OEM:
9990000154883
Vana hind koos KM-ga:
755,00 EUR
Maksumäär
22 %
Allahindlus:
20 % ( 151,00 EUR )
Hind ilma KM-ta:
618,85 EUR
Allahinnatud tooted
604,00 EUR
Viimane madalaim hind
755,00 EUR
Ref:
3
SYNTHETIC ROPE WINCHING SPEED AND ELECTRICITY CONSUMPTION
| Rope Load | Winching Speed (m/min) | Electricity Consumption (amp) |
|---|---|---|
| 0 | 5.9 | 58 |
| 1814 | 4.4 | 158 |
| 3629 | 2.8 | 314 |
| 5897 | 0.8 | 448 |
PULLING FORCE DEPENDING ON ROPE LAYER
| Rope Layer | Pulling Force (kg) | Rope Length on Drum (m) |
|---|---|---|
| 1 | 5897 | 4.9 |
| 2 | 4658 | 11 |
| 3 | 4009 | 17.8 |
| 4 | 3463 | 26 |
| 5 | 2889 | 30 |
The Maverick 13000 HD winch is suitable for small, medium, and large off-road vehicles. Also for tow trucks and industrial vehicles. It can pull up to 5897 kg (13000lbs). The winch design with a powerful motor and transmission, as well as a good construction of the winch itself, allows for use in practically all conditions. The Maverick 13000 HD winch with synthetic rope ensures the highest level of reliability and safety.
WHERE TO FIND THE WIRELESS WINCH CONTROLLER?
Tarnija:
Poola
sünteetilise köie pikkus:
30 m
Tagastamine või vahetamine:
14 päeva
tõmbejõud:
5897 kg
toiteallikas:
elektriline (aku kaudu)
kontroll:
kaabeldatud ja traadita kontroller

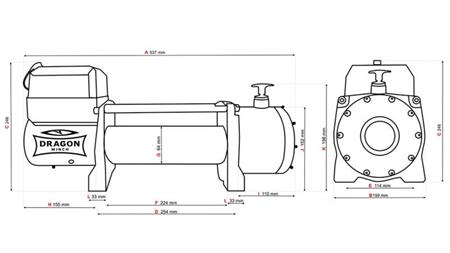

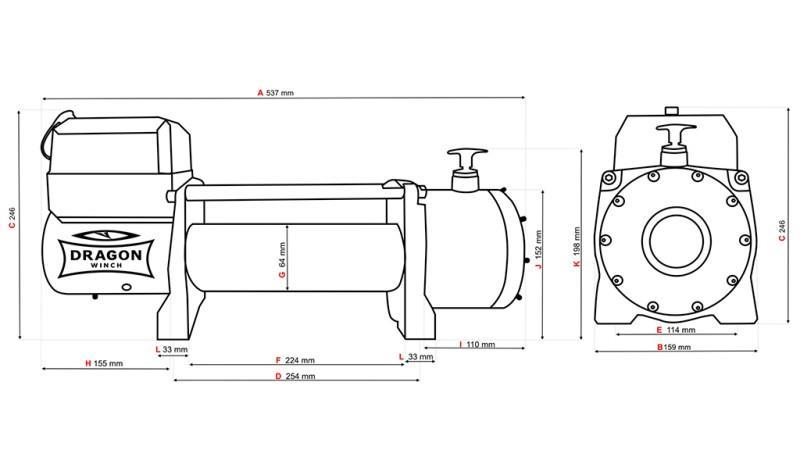

Mõõtmed (d/l/k):
537 mm x 159 mm x 246 mm
paigaldusava vahemaa mõõtmed:
254 mm x 114 mm
pidur:
dünaamiline
võimsuse edastamise süsteem:
3-etapiline planeet
Toote kaal:
43 kg
Pinge:
12V
võimsus:
6.8 hp
